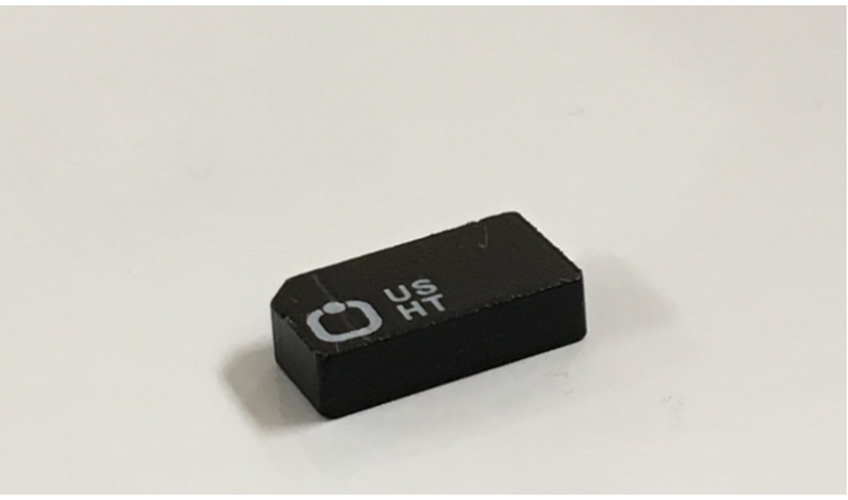

ITS-FIT400 Omni ID Fit 400

Omni ID Fit 400
Omni-ID Fit 400 -With its small form, high temperature capability and high performance, the Omni-ID Fit 400 tags are ideally suited to tracking small metal assets such as Metal hand tools, Metal IT assets including covert tracking, Embedding into metal components, Autoclaves and high temperature sterilizations.

Specifications

Electrical
Air Interface Protocol EPC Class 1 Gen2v2
Operating Frequency 866-868 (MHz) (EU) 902-928 (MHz) (US)
Read Range (Fixed reader) Up to 4m (13.1ft)
Read Range (Handheld reader) Up to 2m (6.6ft)
Material Compatibility Optimized for metal
IC Type (chip) Alien H3
Memory EPC - 96bits | User - 512bits | Unique TID - 64bits
Operation Temperature -20°C to +85°C
Max Temperature Exposure -20°C to +235°C
IP Rating IP68
Shock and Vibration MIL STD 810-G
