IMPINJ SPEEDWAY REVOLUTION R420 UHF RFID READER (4 PORT) ITS-PR2055

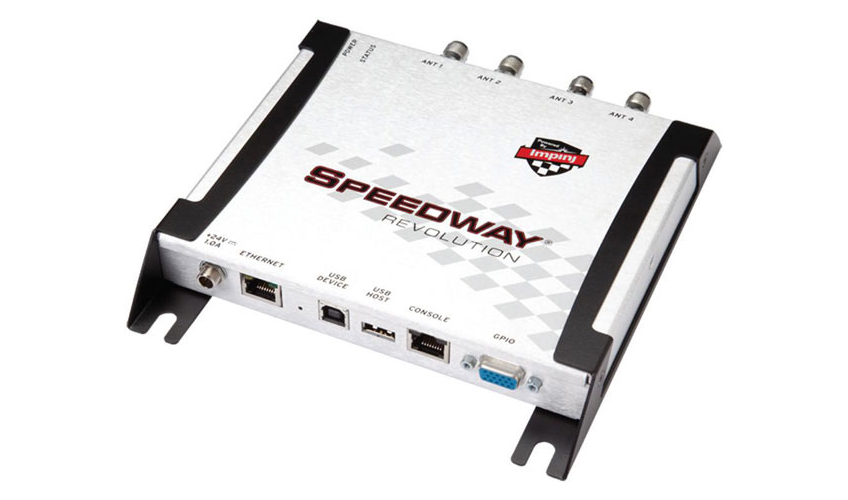

Impinj Speedway Revolution R420 UHF RFID Reader (4 Port)
ITS-PR5055 Impinj Speedway Revolution R420 UHF RFID Reader (4 Port) delivers the performance, quality, and reliability necessary for robust RFID-based information you can count on. With the largest installed base of fixed readers across a diverse range of applications, high mean time between failure, and a suite of supporting products and tools, ITS-PR5055 readers are a powerful piece of every item visibility platform solution.

Specifications

Electronic Specifications
Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Max Receive Sensitivity -82 dBm
Min Return Loss 10 dB
Transmit Power +10.0 to +30.0 dBm (PoE) / +10.0 to 32.5dBm (external universal power supply)
Physical Characteristics
Dimension 19mm x 175mm x 30mm
Weight 0.68kg
Connector RP TNC
USB USB 1.1 Device (Type B) and Host (Type A) ports
GPIO 4 inputs, optically isolated 3-30V; 4 outputs, optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
Power Source Power over Ethernet (PoE) IEEE 802.3af / +24 VDC at 800mA via external univseral power supply.
User Environment
Environment Sealing IEC IP52
Humidity 5% to 95%, non-condensing
Operating Temperature -20°C to +50°C
