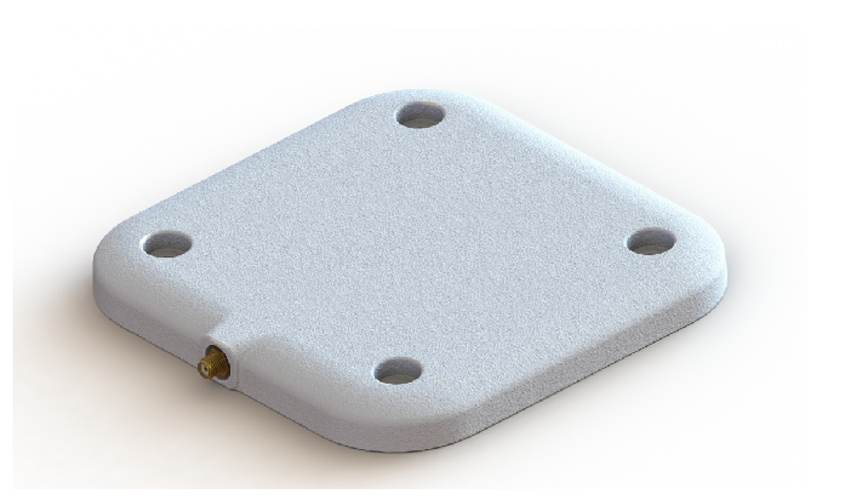

ITS-A5020 SlimLine A5020 Circular Polarized Antenna

SlimLine A5020 Circular Polarized Antenna
Time-7 A5020 -Equipped with the familiar and industry leading Times-7 ultra-low profile, the A5020 offers a compact footprint of only 150 mm / 5.9 inch square in a very smart-looking design. With a 1.5 ft. wider read range than most other antennas of similar size in the market, the circularly polarized A5020 antenna creates a new benchmark for multi-purpose UHF RFID antennas. IP68 rated and built to Times-7’s high standard for quality and robustness, the A5020 can be used for permanent outdoor applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors, which makes the A5020 very suitable for customer facing environments.

Specifications

Operating Frequency FCC (902-928 MHz), ETSI (865-868 MHz)
Polarization Right hand circular
Gain 5.5 dBic
Max Read Distance Up to 4.3 m (14 ft)
Elevation Beamwidth 115°
Azimuth Beamwidth 115°
Connector Type SMA female (connects to SMA male)
Dimensions 150 x 150 x 14 mm (5.9 x 5.9 x 0.55 in)
Weight 0.25 kg (0.55 lbs)
IP Rating IP 68
Operating Temperature -30° to +65°C (-4° to +149°F)
