ITS-6F8990-001 HID Linen Tag 200

HID Linen Tag 200

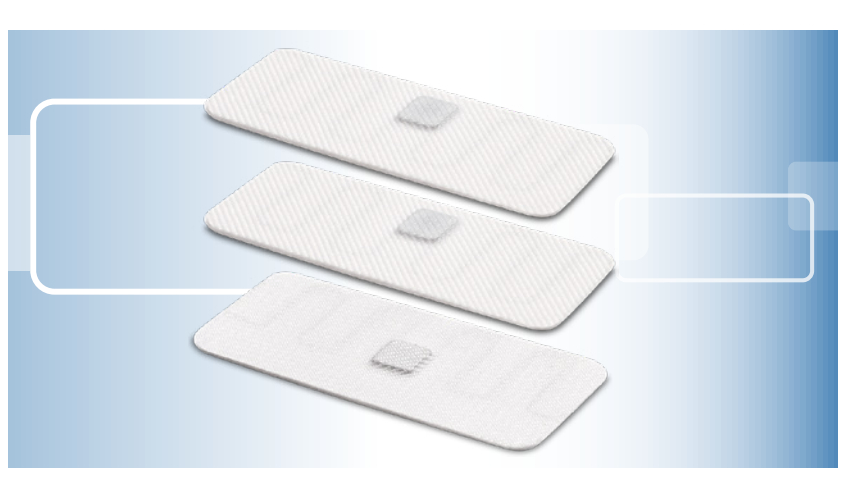

LinTag™ 200 6F8990-001 -HID Global LinTag™ transponders apply securely and discreetly to textiles, enabling RFID tracking of high-volume, commercially laundered bed linens, towels and garments.

Specifications

Electrical
Operating Frequency 860-960 MHz (worldwide)
Chip Type MONZA M5
Memory 128 bit EPC
Anti-Collision Yes
Reading Distance (2W reader ERP, free space) Up to 23 ft (7 m)
Physical
Length × Width 2.5 × 0.9 in (64 × 22 mm) | 2.5 × 1.1 in (64 × 28 mm) | 2.5 × 0.9 in (64 × 22 mm)
Thickness 1.7 mm at module, 0.9 mm over rest of tag
Mounting Method Sew into hem or pouch | Stitch onto fabric | Apply via heat-seal process
Affixes To Linens and garments
Housing Material Cotton and polyester
Color White
Weight 0.04 oz (1.5 g)
Mechanical Resistance
Vibration IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
Shock IEC 68.2.29 [40 g, 18 ms, 6 axis, 2000 times]
Impact IEC 62262-IK04
Axial/Radial Force 1000 N, 10 sec
Mechanical Tests Bending (500 times 10 mm radius), twisting (500 times 180°), drop test (100 times 0.6 ft / 1.8 m)
Extractor Press 60 bar
Thermal (AIR)
Storage -40° to +185° F (-40° to +85° C) 1 × 1000 h
Operating -40° to +185° F (-40° to +85° C)
Peak 248° F (120° C) 100 h
Shock/Fatigue +68° to +320° F (+20° to +160° C), 300 x 5 min with 30 sec transition
Washing
Withstands Exposure To Water and all chemicals common to commercial laundry and dry cleaning
Washing Cycles Up to 200 commercial wash cycles
Washing 194° F (90° C) 15 min
Drying 248° F (120° C) 20 mi
Tunnel Finisher 365° F (185° C) 15 min
Ironing + 428° F (220 ° C) 20 bars 10 x 10 sec., a thin tissue is placed between the iron and the tag
Other
Standards UHF EPC Class 1 Gen 2, ISO 18000-6C
Box Size 1,000 pcs per bag; 5,000 pcs per carton
