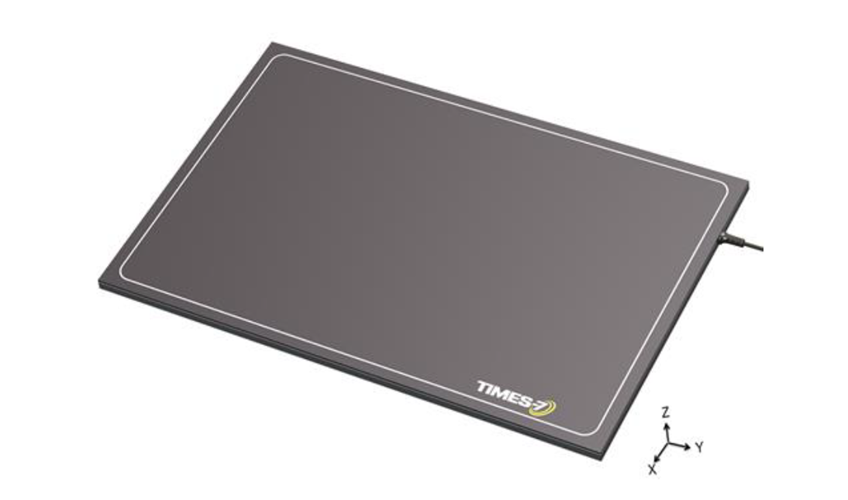

ITS-A7040 SlimLine A7040 Linearly Multi-purpose Antenna

SlimLine A7040 Linearly Multi-purpose Antenna
Times-7 A7040 -Part of the SlimLine range of multi-purpose antennas, the A7040 is sought after for RFID deployments from retail product tracking to industrial/workshop tool tracking. At just 8 mm (0.3 in) thick, the durable, high performance A7040 is specifically designed for real-time asset, product identification, and inventory management. Custom lengths are available.

Specifications

Dimensions 400 mm x 250 mm x 8 mm | 15.7 “ x 9.8 “ x 0.3 “
Weight 1 kg / 2.2 lbs.
Connector/Cable Type SMA female side fly lead (300 mm / 1 ‘) / 195
Operating Storage Temperature -20° to +55°C / -30° to +65°C | -4° to +131°F / -22° to +149°F
Far Field Gain 7.5 dBi typical
3 dB Beamwidth 45° in yz-plane | 80° in xz-plane
VSWR 1.6 typical
Front to Back Ratio -22 dB
Axial Ratio N/A
