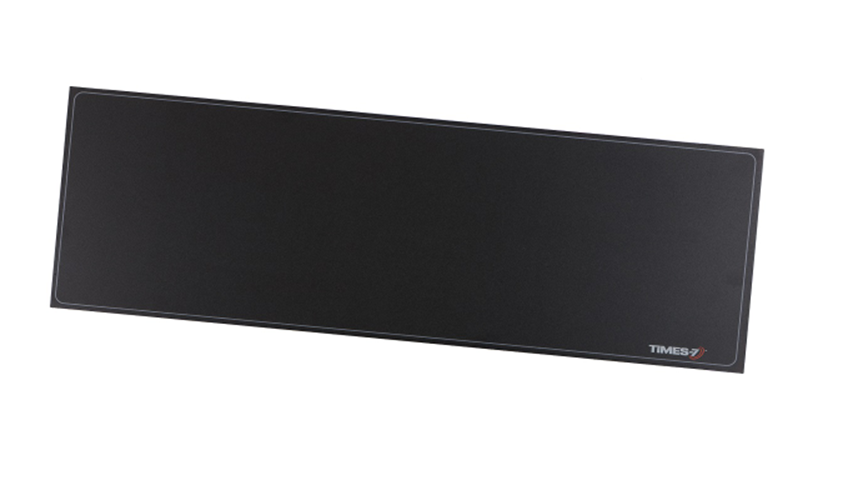

A6590C RFID Ground Antenna 9dBi
A6590C Part of Times-7’s exclusively unique range of ground antennas the A6590C is optimised for RFID deployments involving moving products, assets and people. From conference attendee & people tracking, retail presence aware / loyalty marketing, & race timing, the A6590C is ideal for situations where traditional side antennas are unsuitable or not optimised for the application. At just 8 mm / 0.3 in. thick, the durable, high performance A6590C is uniquely capable of lying flat on the ground within a dooway sized footprint, and can withstand payloads of over 200 kg (440 lbs.).
Specifications
Dimensions |
915 mm x 305 mm x 8 mm | 3’ x 1’ x 0.3” |
Weight |
2 kg / 4.4 lbs.
|
Connector/Cable Type |
SMA female side fly lead (300 mm / 1 ft.) / 195
|
Operating Storage Temperature |
-20° to +55°C / -30° to +65°C | -4° to +131°F / -22° to +149°F
|
Far Field Gain |
9 dBiC typical
|
3 dB Beamwidth |
20° yz-plane | 80° xy-plane
|
VSWR |
1.4 typical |
Front to Back Ratio |
-24 dB
|
Axial Ratio |
2 dB typical
|
